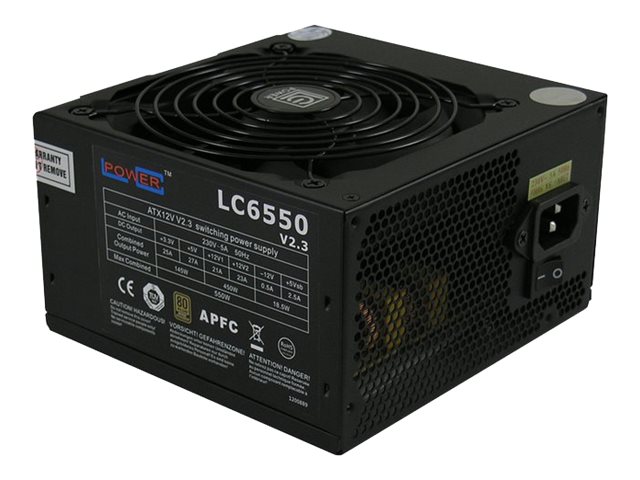

LC Power Super Silent Series LC6550 V2.3 550Watt 80 PLUS Bronze
€45,81
LC Power Super Silent Series LC6550 V2.3 - Strømforsyning (intern) - ATX12V 2.3 - 80 PLUS Bronze - AC 230 V - 550 Watt - aktiv PFC
Availability: In stock
Secure payment · Fast delivery
EAN:4260070120589Categories:, , Brand:
LC Power Super Silent Series LC6550 V2.3 - Strømforsyning (intern) - ATX12V 2.3 - 80 PLUS Bronze - AC 230 V - 550 Watt - aktiv PFC
Specifications
Specifications
| Produktbeskrivelse | LC Power Super Silent Series LC6550 V2.3 - strømforsyning - 550 Watt |
| Enhedstype | Strømforsyning - aktiv Power Factor Correction (PFC) - intern |
| Specifikationsoverensstemmelse | ATX12V 2.3 |
| 80 PLUS certificering | 80 PLUS Bronze |
| Vægt | 1.752 kg |
| Indgangspænding | AC 230 V |
| Udgangspænding | +3.3, +5, ±12 V |
| Strømkapacitet | 550 Watt |
| Output Current | +3.3V - 25 A | +5V - 27 A | +12V1 - 21 A | +12V2 - 23 A | -12V - 0.5 A | +5VSB - 2.5 A |
| Output-stikforbindelser | 1 x power 24 pin ATX with removable 4 pin section<br>1 x power 8 pin EPS12 V with removable 4 pin ATX12V section<br>1 x 8 pin PCI Express power with removable 2 pin section<br>4 x 15 pin Serial ATA power<br>4 x 4-PIN internal power |
| Kølesystem | 120 mm ventilator |
| Dimensioner (B x D x H) | 15 cm x 14 cm x 8.6 cm |
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| PSU Form Factor | ATX |
| Specification Compliance | ATX12V 2.3 |
| 80 PLUS Certification | 80 PLUS Bronze |
| Efficiency | 88% |
| Input Voltage | AC 230 V |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 550 Watt |
| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section | 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section | 1 x 8 pin PCI Express power with detachable 2 pin section | 4 x 15 pin Serial ATA power | 4 x 4 pin internal power |
| Compliant Standards | TUV, RoHS, ErP 2013 |
| Cooling System | 120 mm fan |
| Features | Overcurrent protection, overvoltage protection, overpower protection, undervoltage protection, dual 12V rails, short-circuit protection, temperature controlled fan |
| Depth | 14 cm |
| Height | 8.6 cm |
| Weight | 1.752 kg |
| Width | 15 cm |
