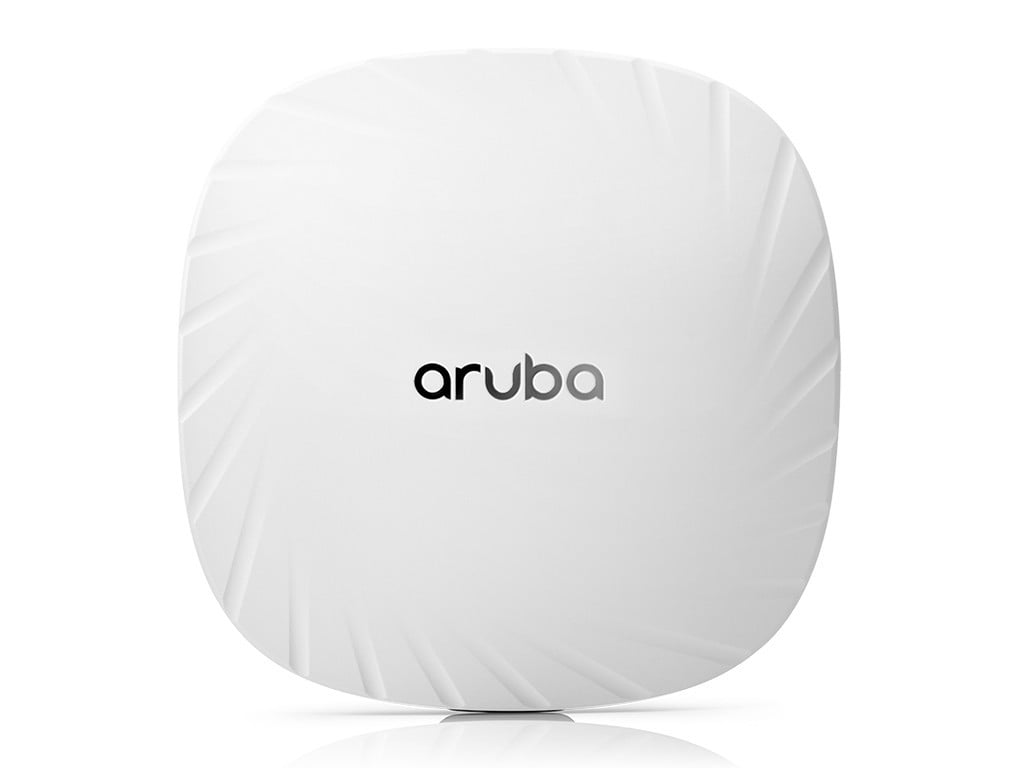

HPE Aruba AP-505 (RW) Wireless connection White WiFi Access Point
- HPE Aruba AP 505 (RW) Campus wireless connection Bluetooth, Wi Fi 6 2.4 GHz, 5 GHz in the ceiling
Availability: In stock
Product description: HPE Aruba AP-505 (RW) - Campus - wireless connection - Bluetooth, Wi-Fi 6 Device type: Wireless connection Form factor: In the ceiling - indoors Data connection protocol: IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0, IEEE 802.11ax (Wi-Fi 6) Frequency band: 2.4 GHz, 5 GHz Performance: Maximum data rate (2.4 GHz): 574 Mbps Maximum data rate (5 GHz): 1.2 Gbps Total throughput: 1.774 Gbps Capacity: Wireless clients per WiFi radio: 256 BSSIDs per radio: 16 OFDMA units: 8 Equipment included: Mounting bracket OS required: ArubaOS, InstantOS Power Over Ethernet (PoE) supported: PoE Manufacturer's Warranty: Limited Lifetime Warranty
Specifications
| Device type | Wireless connection |
| Robust design for outdoor use | Indoors |
| Data connection protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0, IEEE 802.11ax (Wi-Fi 6) |
| Data transfer speed | 1.2 Gbps |
| Characteristics | Auto-uplink (auto MDI/MDI-X), Deep Packet Inspection (DPI), Trusted Platform Module (TPM), Maximum Ratio Combining (MRC), Low Density Parity Check (LDPC), Transmit Beam-forming (TxBF) Ready, Direct Sequence Spread Spectrum (DSSS), Cyclic Delay Diversity (CDD), Advanced Cellular Coexistence (ACC), ClientMatch, Cyclic Shift Diversity (CSD), MU-MIMO Technology, Packet Aggregation A-MPDU, Packet Aggregation A-MSDU, SU-MIMO technology, Intelligent Power Monitoring (IPM), Dynamic Frequency Selection (DF |
| Connection technology | Wireless |
| Frequency band | 2.4 GHz, 5 GHz |
| Capacity | Wireless clients per WiFi radio: 256 | BSSIDs per radio: 16 | OFDMA units: 8 |
| Encryption algorithm | SSL, WPA, WPA2, WPA3 |
| Line encoding format | CCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM, OFDM, 1024 QAM, OFDMA |
| Model | In the ceiling |
| Compliance Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at, IEEE 802.3az, IEEE 802.11ac, IEEE 802.11ax, Wi-Fi CERTIFIED 6 |
| Performance | Maximum data rate (2.4 GHz): 574 Mbps | Maximum data rate (5 GHz): 1.2 Gbps | Total throughput: 1.774 Gbps |
| Spread-spectrum method | OFDM, DSSS, OFDMA |
| Status indicators | System, status |
| Number of antennas | 2 |
| Antenna | Internal |
| Directivity | Omni-directional |
| Reinforcement | 5.7 dBi |
| Internet of Things (IoT) compliant | Yes |
| Communication technology | Bluetooth Low Energy (LE), Zigbee |
| Interface | 1 x 1000Base-T - RJ-45 | 1 x USB 2.0 - Type A | 1 x console - micro-USB |
| MTBF (expected time between failures) | 148 years |
| Compliance Standards | UL 2043, FCC, EN 60601-1-1, CE/EMC, Directive 2014/35/EU, Directive 2014/30/EU, ISED, Directive 2014/53/EU, IEC/EN/UL 60950, ETS 300 019 Class 2.3, ETS 300 019 Class 1.2 |
| Equipment included | Mounting bracket |
| Power Over Ethernet (PoE) supported | PoE |
| Power consumption during operation | 8.9 watts |
| OS required | ArubaOS, InstantOS |
| Width at shipment | 19.3 cm |
| Depth at shipment | 18.3 cm |
| Height at shipment | 6.3 cm |
| Shipping weight | 645 g |
| Service & Support | Limited Warranty - Lifetime |
| Humidity level during use | 5 - 93% (non-condensing) |
| Max. operating temperature | 50 °C |
| My. operating temperature | 0 °C |
