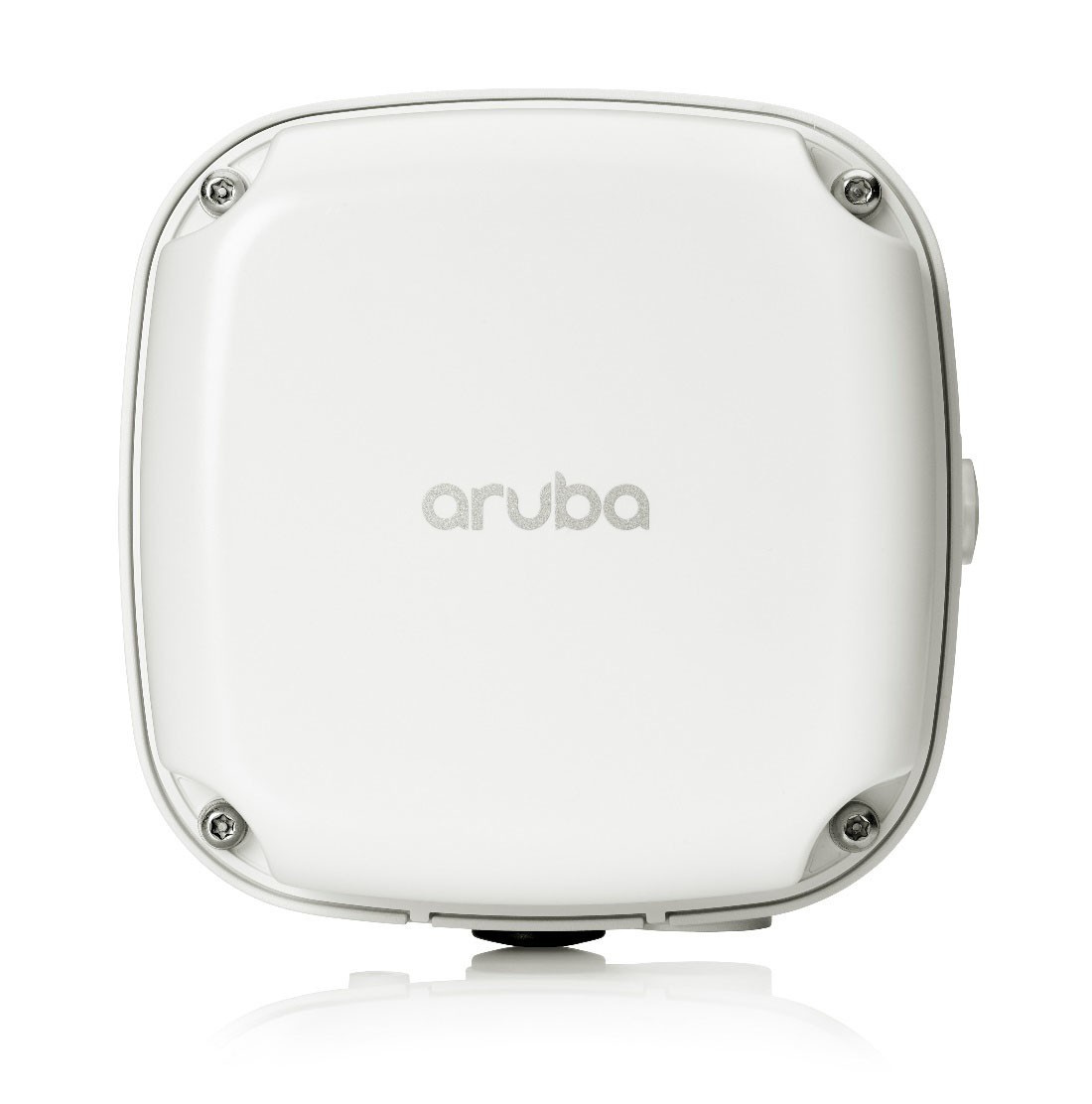

HPE Aruba AP-567 (RW) Wireless connection White WiFi Access Point
- HPE Aruba AP 567 (RW) Wireless connection ZigBee, Bluetooth, Wi Fi 6 2.4 GHz, 5 GHz BTO
Availability: Out of stock
Product description: HPE Aruba AP-567 (RW) - wireless connection - ZigBee, Bluetooth, Wi-Fi 6 Device type: Wireless connection Form factor: External - outdoor Data connection protocol: IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, ZigBee, IEEE 802.11ac Wave 2, Bluetooth 5.0, IEEE 802.11ax (Wi-Fi 6) Frequency band: 2.4 GHz, 5 GHz Performance: Maximum data rate (5 GHz): 1.2 Gbps Maximum data rate (2.4 GHz): 574 Mbps Capacity: Wireless clients per WiFi radio: 256 BSSIDs per radio: 16 OFDMA units: 16 OS required: ArubaOS, InstantOS 8.8.0.0 Power Over Ethernet (PoE) supported: PoE+ Price type: BTO Dimensions (W x D x H): 16.5 cm x 16.5 cm x 11 cm Weight: 1.09 kg Manufacturer's Warranty: Limited Lifetime Warranty
Specifications
| Width | 16.5 cm |
| Depth | 16.5 cm |
| Device type | Wireless connection |
| Height | 11 cm |
| Robust design for outdoor use | Outdoors |
| Weight | 1.09 kg |
| Data connection protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, ZigBee, IEEE 802.11ac Wave 2, Bluetooth 5.0, IEEE 802.11ax (Wi-Fi 6) |
| Data transfer speed | 1.49 Gbps |
| Characteristics | Auto-uplink (auto MDI/MDI-X), Trusted Platform Module (TPM), reset button, Maximum Ratio Combining (MRC), Low Density Parity Check (LDPC), Transmit Beam-forming (TxBF) ready, Cyclic Delay Diversity (CDD), Space Time Blocking Code (STBC), Virtual Mobility Controller mode, Advanced Cellular Coexistence (ACC), ClientMatch, Cyclic Switching Diversity (CSD), MU-MIMO technology, Packet Aggregation A-MPDU, Packet Aggregation A-MSDU, Intelligent Power Monitoring (IPM), Dynamic Frequency Selection (DFS), |
| Connection technology | Wireless |
| Frequency band | 2.4 GHz, 5 GHz |
| Capacity | Wireless clients per WiFi radio: 256 | BSSIDs per radio: 16 | OFDMA units: 16 |
| Encryption algorithm | WPA3-Enhanced Open, WPA2-MPSK |
| Line encoding format | CCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM, OFDM, 1024 QAM, OFDMA |
| Model | External |
| Performance | Maximum data rate (5 GHz): 1.2 Gbps | Maximum data rate (2.4 GHz): 574 Mbps |
| Spread-spectrum method | OFDM, DSSS, OFDMA |
| Status indicators | System, status, radio |
| Antenna | Internal |
| Directivity | Direction |
| Internet of Things (IoT) compliant | Yes |
| Communication technology | Bluetooth Low Energy (LE), Zigbee |
| Interface | 1 x 1000Base-T - RJ-45 | 2 x antenna | 1 x console - USB-C |
| Compliance Standards | CB, UL 2043, FCC, EN 60601-1-2, cTUVus, IP67, IP66, EN 60601-1-1, EMC 2014/30/EU, LVD 2014/35/EU, ISED, IEC/EN/UL 60950, ETSI 300 019-2-4, RED 2014/53/EU |
| Price type | BTO |
| Power Over Ethernet (PoE) supported | PoE+ |
| Power consumption during operation | 15.6 watts |
| OS required | ArubaOS, InstantOS 8.8.0.0 |
| Service & Support | Limited Warranty - Lifetime |
| Humidity level during use | 5 - 95% (non-condensing) |
| Max. operating temperature | 55 °C |
| My. operating temperature | -40 °C |
