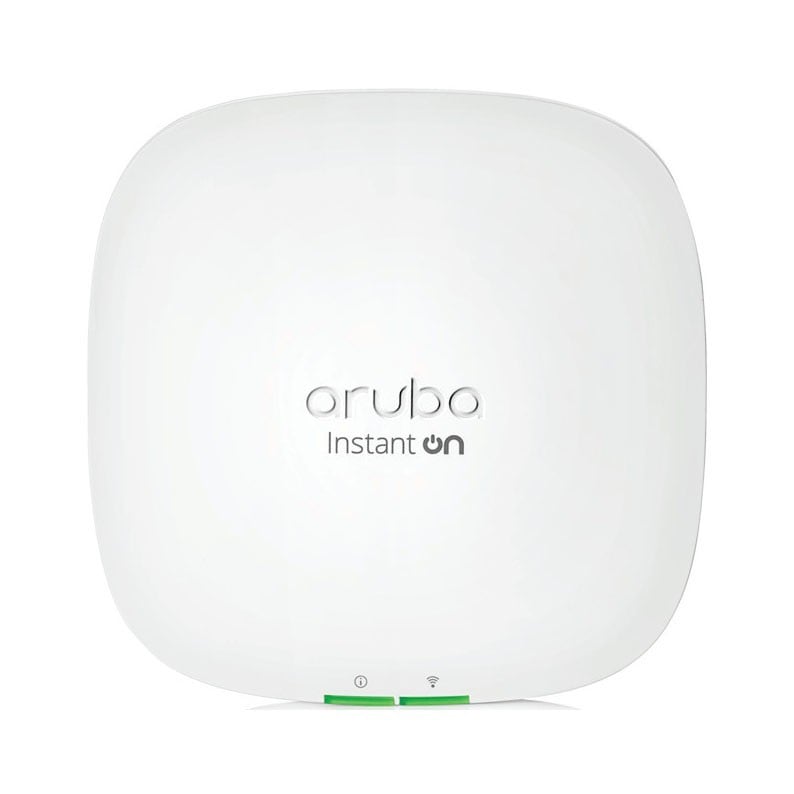

HPE Aruba Instant ON AP22 (RW) Wireless connection White WiFi Access
- HPE Networking Instant On AP22 (RW) Wireless connection Bluetooth, Wi Fi 6 2.4 GHz, 5 GHz wall/ceiling mountable
Availability: In stock
Product description: HPE Networking Instant On AP22 (RW) - wireless connection - Bluetooth, Wi-Fi 6 Device type: Wireless connection Form factor: Wall/ceiling mountable - indoors Data connection protocol: Bluetooth, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6) Frequency band: 2.4 GHz, 5 GHz Performance: Maximum data rate (5 GHz): 1.2 Gbps Maximum data rate (2.4 GHz): 574 Mbps Equipment included: Wall/ceiling rail mounting clamp Power Over Ethernet (PoE) supported: PoE Dimensions (W x D x H): 16 cm x 16 cm x 3.7 cm Weight: 500 g Manufacturer's warranty: 1 year warranty
Specifications
| Width | 16 cm |
| Depth | 16 cm |
| Device type | Wireless connection |
| Height | 3.7 cm |
| Robust design for outdoor use | Indoors |
| Weight | 500 g |
| Data connection protocol | Bluetooth, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6) |
| Characteristics | Firewall protection, manageable, static IP mode, Trusted Platform Module (TPM), reset button, Low Density Parity Check (LDPC), Transmit Beam-forming (TxBF) ready, security lock opening (cable lock sold separately), Advanced Cellular Coexistence (ACC), MU-MIMO technology, 2x2 MIMO technology, Bluetooth (BLE) clients support, Target Wait Time (TWT), Smart Mesh technology, BSS Coloring |
| Connection technology | Wireless |
| Frequency band | 2.4 GHz, 5 GHz |
| Encryption algorithm | WPA2, WPA3 |
| Line encoding format | 1024 QAM |
| Model | Wall/ceiling mountable |
| Network/overflow protocol | PPPoE |
| Compliance Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, Wi-Fi CERTIFIED 6 |
| Performance | Maximum data rate (5 GHz): 1.2 Gbps | Maximum data rate (2.4 GHz): 574 Mbps |
| Spread-spectrum method | OFDMA |
| Status indicators | Status |
| Antenna | Internal |
| Directivity | Omni-directional |
| Internet of Things (IoT) compliant | Yes |
| Communication technology | Bluetooth Low Energy (LE) |
| Interface | 1 x Ethernet 1000 (uplink) |
| Cables included | 1 x network cable |
| MTBF (expected time between failures) | 91 years |
| Compliance Standards | UL 2043, EN 60601-1-2, EN 60601-1-1 |
| Equipment included | Wall/ceiling rail mounting clamp |
| Power Over Ethernet (PoE) supported | PoE |
| With software | InstantOn |
| Service & Support | Limited Warranty - 1 Year | Technical support - telephone advice - 90 days | Support for product information - web support - 1 year |
| Max. operating temperature | 40 °C |
| My. operating temperature | 0 °C |
