Features Ubiquiti UAP Nano HD 5-pack

5-pack access point for a large WiFi rangeDual band 802.11ac WiFi4x4 Wave 2 MU-MIMOSuitable for indoor useSpeed: 300Mbps (2.4GHz) + 1733Mbps (5GHz)802.3af PoE support (adapters not included)1 x Gigabit LAN network connectionTransmission power 2.4Ghz: 23dBm/200mWTransmission power 5Ghz: 26dBm/400mWDimensions: Ø 160 x 32.65 mm

Lightning-fast indoor/outdoor access points

The Ubiquiti UniFi UAP Nano HD are the compact version of the UAP AC HD. Although they are small in size, these access points allow you to set up a stable and reliable WiFi network with high capacity. The devices are suitable for indoor use and deliver a throughput speed of up to 300 + 1733 Mbps. The powerful 4x4 MU-MIMO transmitters with beamforming provide excellent coverage.

Wave 2 MU-MIMO

The UniFi UAP Nano HD supports Wave 2 MU-MIMO technology. The advantage of this technology is that the access points can communicate with multiple clients at the same time, which was not possible with older access points. Clients benefit from significantly faster speeds and better WiFi performance with Wave 2 MU-MIMO.

Ceiling or wall mounting

Thanks to the slim smoke detector design, you can unobtrusively mount the Ubiquiti UniFi UAP Nano HD on the ceiling or wall. There are even optional skins available (including marble, wood or camouflage print) that allow you to blend the access points into the environment. You connect the Ubiquiti UniFi to your router, after which you install and manage the access points via Ubiquiti's free UniFi Controller software. The software is available for both Windows and Mac.

Power over Ethernet

The Ubiquiti UAP Nano HD supports 802.3af Power over Ethernet, or PoE. Using a PoE injector (not included), a single access point can receive power via the network cable. But with this 5-pack you can use multiple access points. We therefore recommend using a (UniFi) switch that supports 802.3af.

Free management software

The Ubiquiti UAP Nano HD includes the UniFi Controller software. This allows you not only to manage the access points, but also to monitor network performance, detect problems, make analyzes and create a login portal for guests. You can centrally manage all access points via the UniFi Controller software. The software is very user-friendly and also suitable for people with little technical knowledge.

Package contents

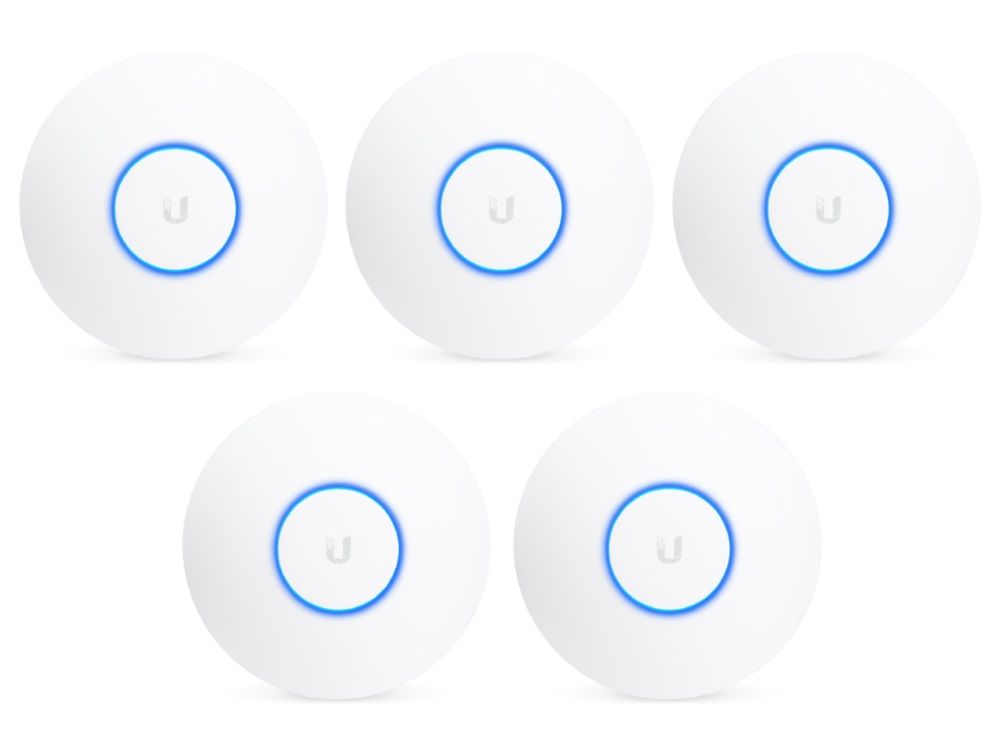

• 5x Ubiquiti UniFi UAP Nano HD
• Manual
Please note: Skins, PoE injectors and a PoE switch are sold separately
