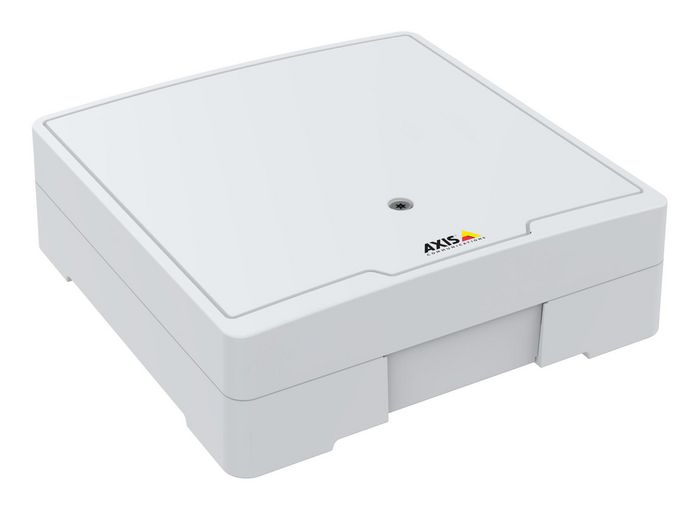

Axis A1610 Network Door Controller
This advanced and robust door controller includes everything needed to control two doors–all powered by one PoE cable, featuring four reader connections as well as two Form C relays to power the onboard lock. You can store up to 250k credentials and 250k event logs on the device itself. With built-in cybersecurity features, this smart door controller can internally handle all tasks related to door access—even if the network is down.
Availability: In stock
This advanced and robust door controller includes everything needed to control two doors–all powered by one PoE cable, featuring four reader connections as well as two Form C relays to power the onboard lock. You can store up to 250k credentials and 250k event logs on the device itself. With built-in cybersecurity features, this smart door controller can internally handle all tasks related to door access—even if the network is down.
Specifications
| Operating relative humidity (H-H) | 20 - 85 % |
| Operating temperature (T-T) | -40 - 55 °C |
| Storage temperature (T-T) | -40 - 55 °C |
| Certification | EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), VCCI Class A, RCM AS/NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835 |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10, 100 |
| Internal storage capacity | 2 GB |
| Number of Wiegand readers supported | 2 |
| Storage media | Flash |
| Wiegand interface | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| RS-485 ports | 1 |
| Built-in UPS | No |
| Case design | Housing |
| Interface | RJ-45 / RS-485 |
| Maximum number of doors | 2 door(s) |
| Relay inputs | 2 |
| Brand Name | Axis |
| Warranty | 5 years |
