Features Ubiquiti UniFi Panic Bar

Mechanical panic bar for emergency exitsQuick release by pressing the rodSuitable for doors from 711-914mm wideNon-handed and reversible designDry relay output for connection with access controlMade of aluminum and stainless steelCertified to UL 305 and ANSI/BHMA Grade 1

Safe and rapid evacuation in case of emergency

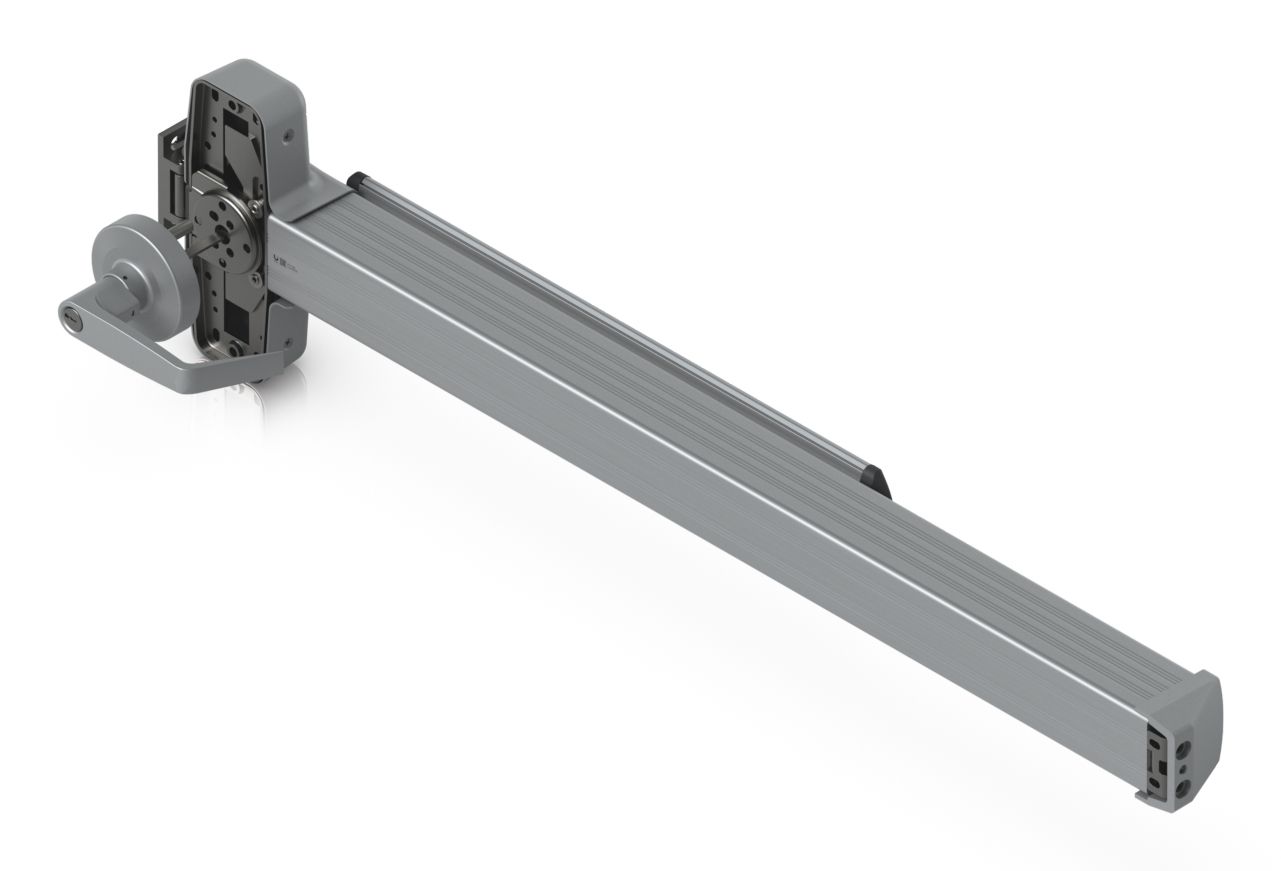

The Ubiquiti UniFi Panic Bar is intended for emergency exits where reliable and intuitive operation is required. By pressing the bar, the lock is immediately released, without keys, cards or electronic actions. This makes the panic bar suitable for public buildings, business environments, educational institutions and other locations where safety is central.

Panic bar for standard emergency doors

The UniFi panic bar is designed for standard doors with a width of 711-914mm and a door leaf of 44 or 51mm thick, made of wood or metal. Thanks to the non-handed design, the panic bar is suitable for both left and right-handed doors. The minimum stile width of 108mm ensures wide applicability in existing doors.

Connection with access and alarm systems possible

The Ubiquiti UniFi Panic Bar has a dry relay output that allows the status of the emergency exit to be passed on to an access control system or alarm system. When the bar is pressed, the contact is short-circuited and the door opens immediately. This makes integration with professional security solutions easily possible.

Certified quality for professional applications

This Ubiquiti UniFi Panic Bar meets major safety standards, including UL 305, UL 10C, CAN/ULC-S132, and ANSI/BHMA A156.3 Grade 1. It also complies with California Building Code Section 11B-309.4. This makes the panic bar suitable for applications where regulations and certification are required.

Package contents

• Ubiquiti UniFi Panic Bar (UACC-PanicBar)
• Fastening material
