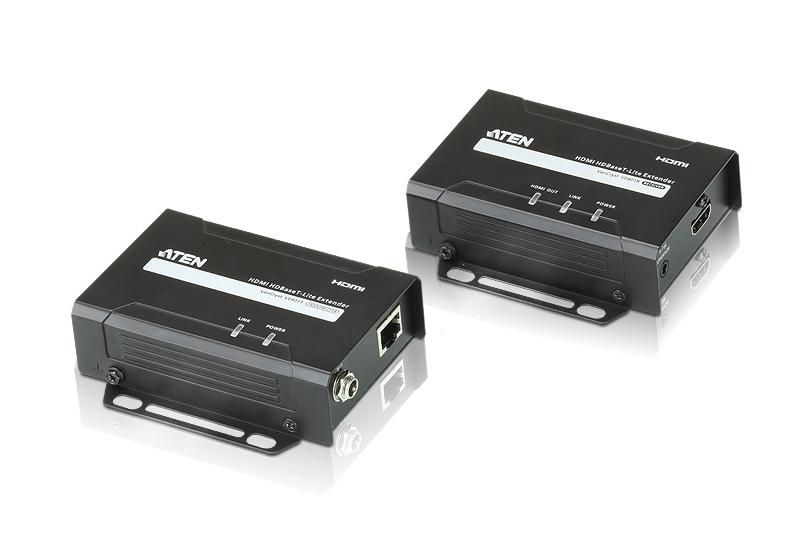

ATEN HDMI Extender (T+R) over 1 CAT5e/6 Cable (70m) ,4K / HDBaseT-Lite (Class B)
ATEN HDMI Extender (T+R) over 1 CAT5e/6 Cable (70m) ,4K / HDBaseT-Lite (Class B), 3840 x 2160 pixels, AV transmitter & receiver, 70 m, Wired, Black, HDCP
Availability: In stock
ATEN HDMI Extender (T+R) over 1 CAT5e/6 Cable (70m) ,4K / HDBaseT-Lite (Class B). Type: AV transmitter & receiver, Maximum resolution: 3840 x 2160 pixels, Cable types supported: Cat5, Cat6, Cat6a. Connectivity technology: Wired. Weight: 780 g, Receiver dimensions (WxDxH): 34.3 x 98.6 x 30 mm, Receiver weight: 250 g. Package width: 59 mm, Package depth: 239 mm, Package height: 160 mm. Master (outer) case width: 250 mm, Master (outer) case length: 325 mm, Master (outer) case height: 175 mm
Specifications
| Type | AV transmitter & receiver |
| Maximum resolution | 3840 x 2160 pixels |
| Cable types supported | Cat5, Cat6, Cat6a |
| Maximum transfer distance | 70 m |
| LED indicators | Yes |
| Supported video modes | 1080p |
| Bandwidth | 340 MHz |
| HDCP | Yes |
| Material | Metal |
| Product colour | Black |
| Connectivity technology | Wired |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| DC-in jack | Yes |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight | 780 g |
| Receiver dimensions (WxDxH) | 34.3 x 98.6 x 30 mm |
| Receiver weight | 250 g |
| Transmitter dimensions (WxDxH) | 34.3 x 98.6 x 30 mm |
| Transmitter weight | 240 g |
| Package width | 59 mm |
| Package depth | 239 mm |
| Package height | 160 mm |
| Package weight | 841 g |
| AC adapter included | Yes |
| Compliance certificates | RoHS |
| Master (outer) case width | 250 mm |
| Master (outer) case length | 325 mm |
| Master (outer) case height | 175 mm |
| Master (outer) case gross weight | 4.6 kg |
| Master (outer) case net weight | 3.9 kg |
| Products per master (outer) case | 5 pc(s) |
