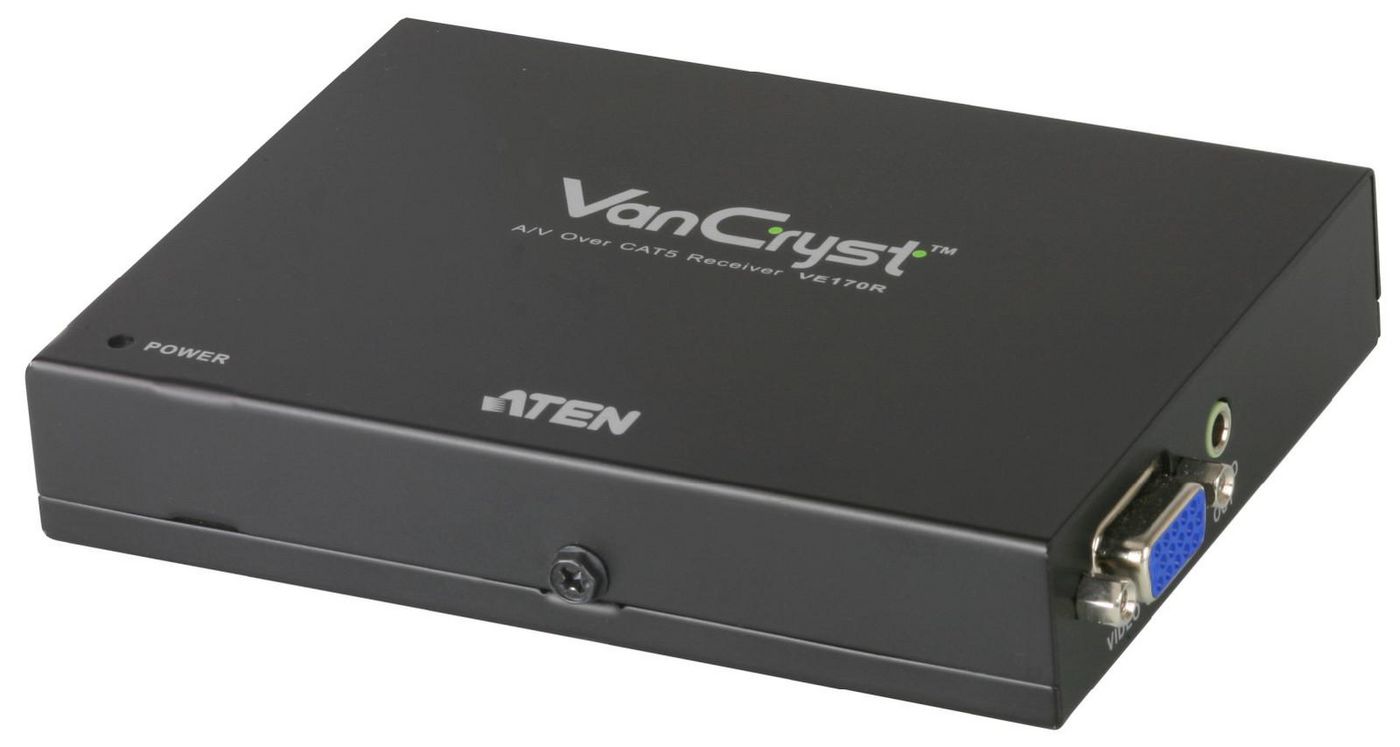

ATEN VGA Over Cat5e/6 Audio/Video Receiver (300m)
€95,64
ATEN VGA Over Cat5e/6 Audio/Video Receiver (300m), 1920 x 1200 pixels, AV receiver, 300 m, Wired, Black
Availability: In stock
Secure payment · Fast delivery
EAN:4710423777286Categories:, , Brand:
ATEN VGA Over Cat5e/6 Audio/Video Receiver (300m). Type: AV receiver, Maximum resolution: 1920 x 1200 pixels, Cable types supported: Cat5. Connectivity technology: Wired. Operating voltage (receiver): 5.3 V, Power consumption (RX): 3.32 W. Width: 127.7 mm, Depth: 90.4 mm, Height: 22.6 mm. Quantity per pack: 1 pc(s), Package width: 59 mm, Package depth: 239 mm
Specifications
Specifications
| Type | AV receiver |
| Maximum resolution | 1920 x 1200 pixels |
| Cable types supported | Cat5 |
| Maximum transfer distance | 300 m |
| Maximum refresh rate | 60 Hz |
| Electrostatic Discharge (ESD) protection | 15 kV |
| Supported graphics resolutions | 1024 x 768 (XGA), 1600 x 1200 (UXGA), 1920 x 1200 (WUXGA) |
| Bandwidth | 300 MHz |
| Material | Metal |
| Rack mounting | Yes |
| Impedance | 75 Ω |
| Product colour | Black |
| Connectivity technology | Wired |
| VGA (D-Sub) output ports | 1 |
| Audio output | 1 |
| DC-in jack | Yes |
| Operating voltage (receiver) | 5.3 V |
| Power consumption (RX) | 3.32 W |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Width | 127.7 mm |
| Depth | 90.4 mm |
| Height | 22.6 mm |
| Weight | 460 g |
| Quantity per pack | 1 pc(s) |
| Package width | 59 mm |
| Package depth | 239 mm |
| Package height | 160 mm |
| Package weight | 560 g |
| AC adapter included | Yes |
| Manual | Yes |
| Mounting kit | Yes |
| Master (outer) case width | 250 mm |
| Master (outer) case length | 325 mm |
| Master (outer) case height | 175 mm |
| Master (outer) case gross weight | 3.2 kg |
| Master (outer) case net weight | 2.3 kg |
| Products per master (outer) case | 5 pc(s) |
