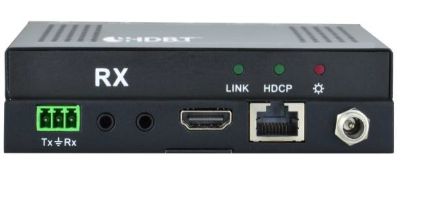

Vivolink VL120016R AV extender AV receiver Black
€181,67
Vivolink VL120016R, AV receiver, 70 m, Wired, 3D, Black, HDCP
Availability: In stock
Secure payment · Fast delivery
EAN:5711783613282Categories:, , Brand:
Vivolink VL120016R. Type: AV receiver, Cable types supported: Cat5e, Maximum transfer distance: 70 m. Connectivity technology: Wired, Serial interface type: RS-232. AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz, Operating voltage: 24 V. Width: 115 mm, Depth: 84 mm, Height: 16.2 mm. Package width: 152 mm, Package depth: 151 mm, Package height: 81 mm
Specifications
Specifications
| Type | AV receiver |
| Cable types supported | Cat5e |
| Maximum transfer distance | 70 m |
| IR pass-through | Yes |
| HDCP pass-through | Yes |
| RS-232 pass-through | Yes |
| CEC pass-through | Yes |
| LED indicators | Yes |
| Supported video modes | 3840p |
| Bandwidth | 10.2 Gbit/s |
| Remote control type | IR + RS232 |
| HDCP | Yes |
| 3D | Yes |
| HDCP & EDID bypass | Yes |
| Consumer Electronics Control (CEC) support | Yes |
| Wall mountable | Yes |
| HDCP version | 2.2 |
| Product colour | Black |
| HDBaseT certified | Yes |
| Connectivity technology | Wired |
| RJ-45 input ports | 1 |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| HDMI version | 1.4 |
| RS-232 input ports | 1 |
| RS-232 output ports | 1 |
| Video in | 1 |
| Video out | 1 |
| Serial ports quantity | 1 |
| Serial interface type | RS-232 |
| 3.5 mm (1/8-inch) in | Yes |
| 3.5 mm (1/8-inch) out | Yes |
| Remote (IR) input | 1 |
| Remote (IR) output | 1 |
| DC-in jack | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Operating voltage | 24 V |
| Output current | 1.25 A |
| Power consumption (receiver) (max) | 11 W |
| External power adapter | Yes |
| Power over Ethernet (PoE) | Yes |
| Operating temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Width | 115 mm |
| Depth | 84 mm |
| Height | 16.2 mm |
| Weight | 208 g |
| Package width | 152 mm |
| Package depth | 151 mm |
| Package height | 81 mm |
| Package weight | 308 g |
| AC adapter included | Yes |
| Included power plug types | EU |
| IR blaster included | No |
| IR receiver included | No |
| Mounting brackets included | Yes |
| Audio support | Yes |
